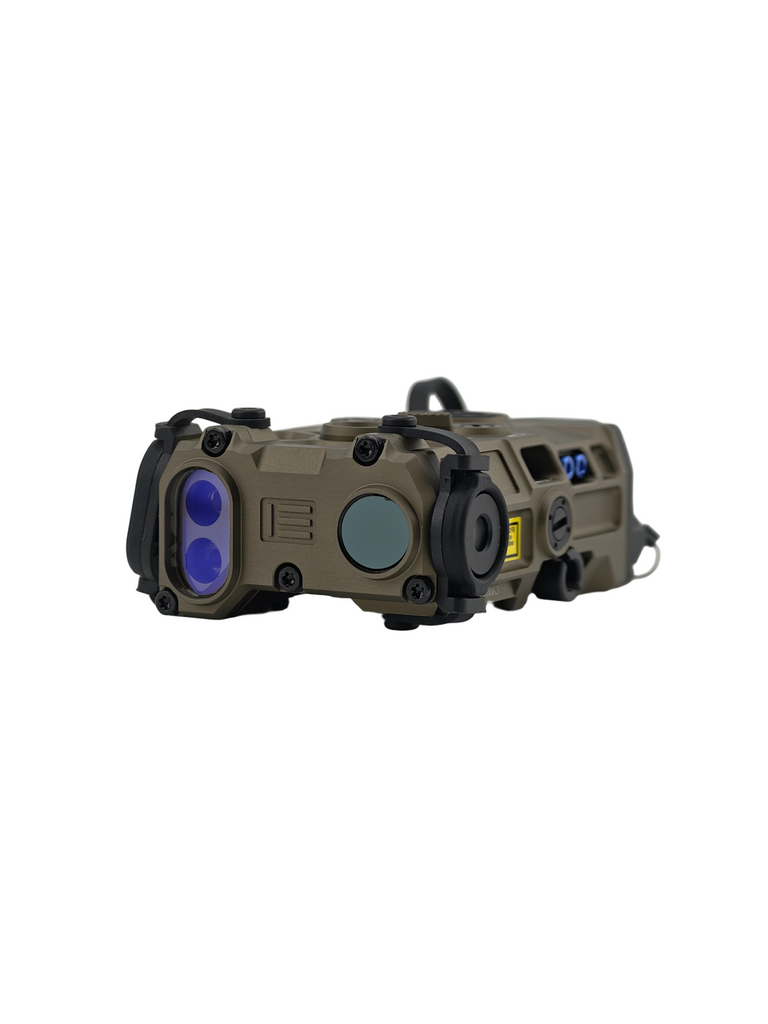

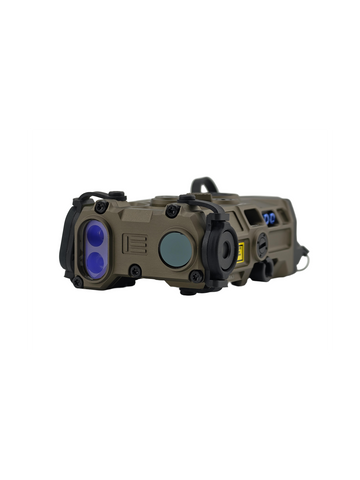

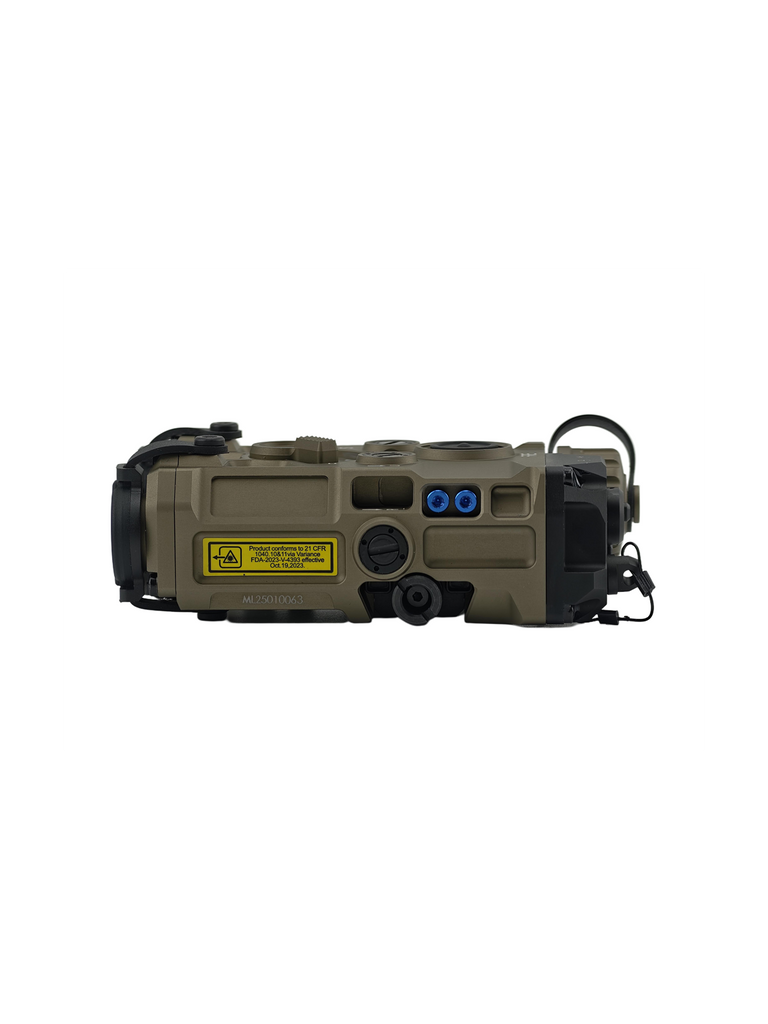

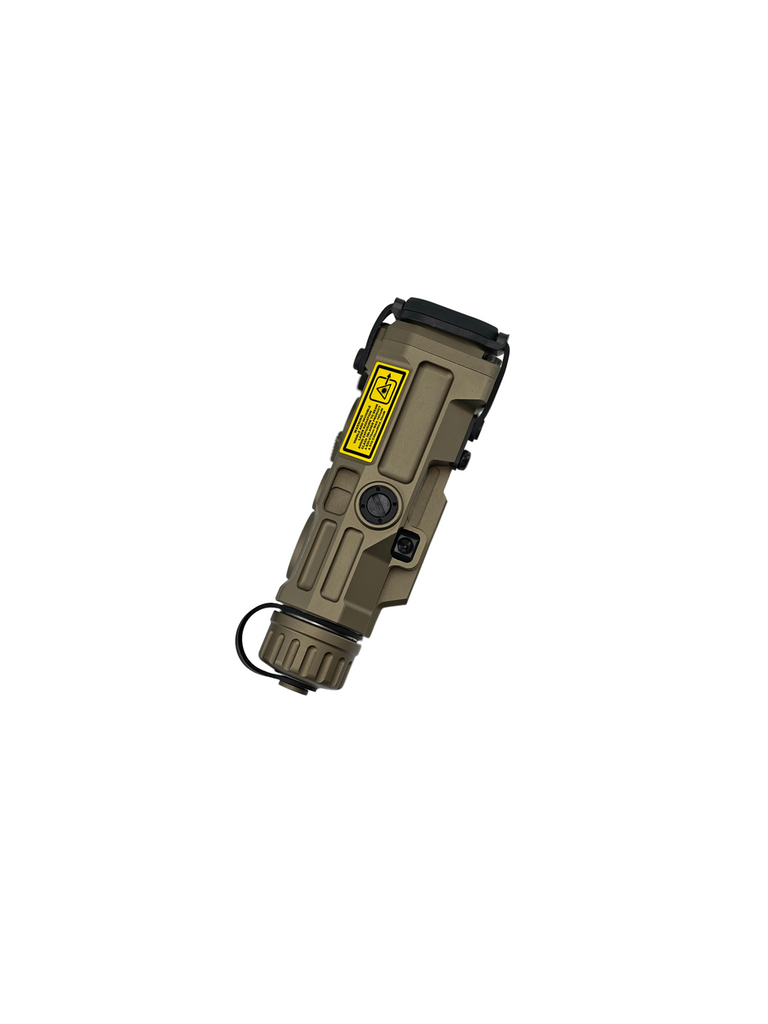

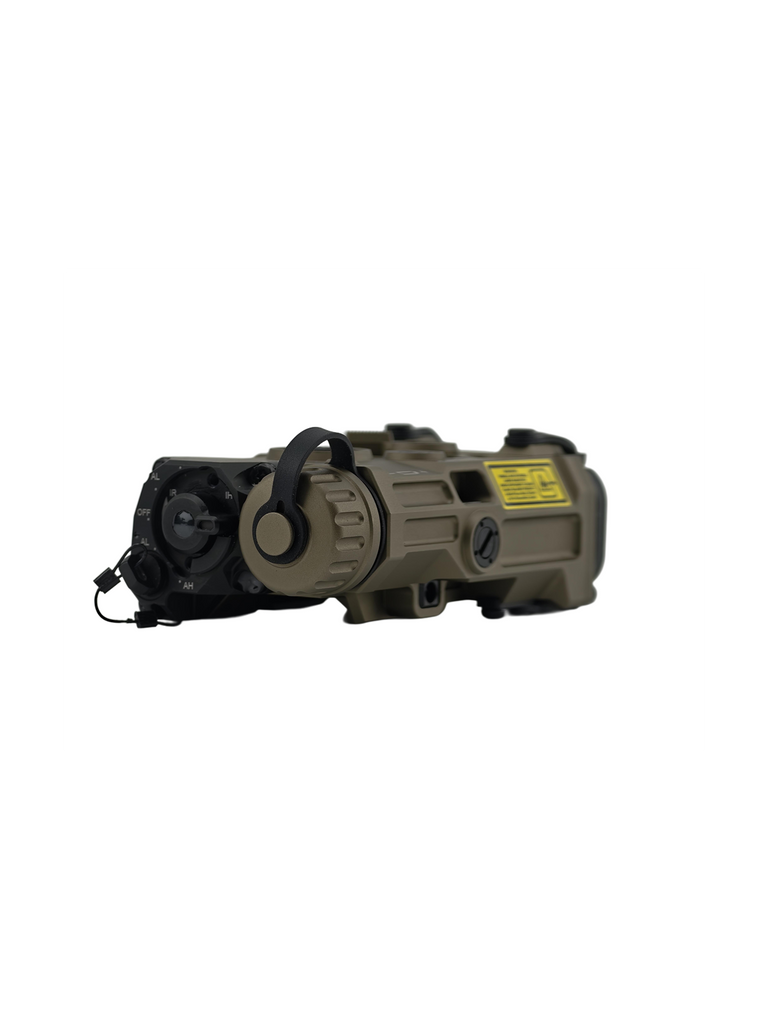

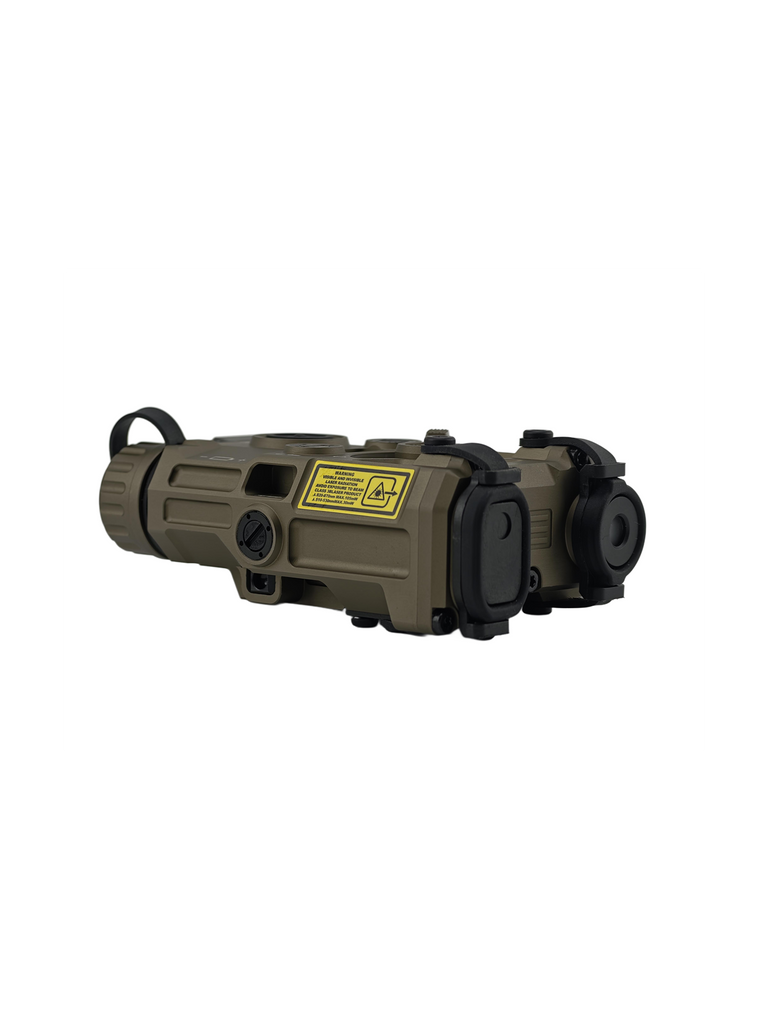

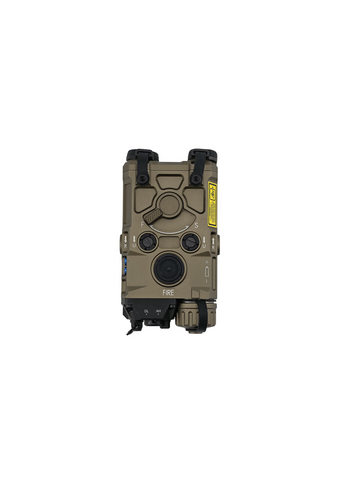

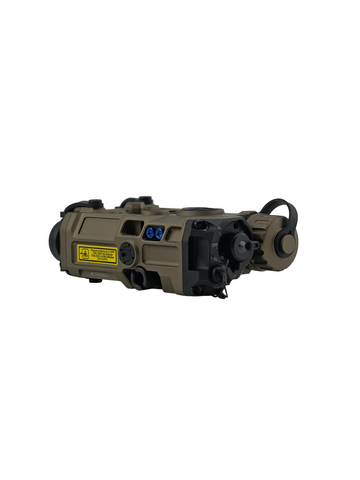

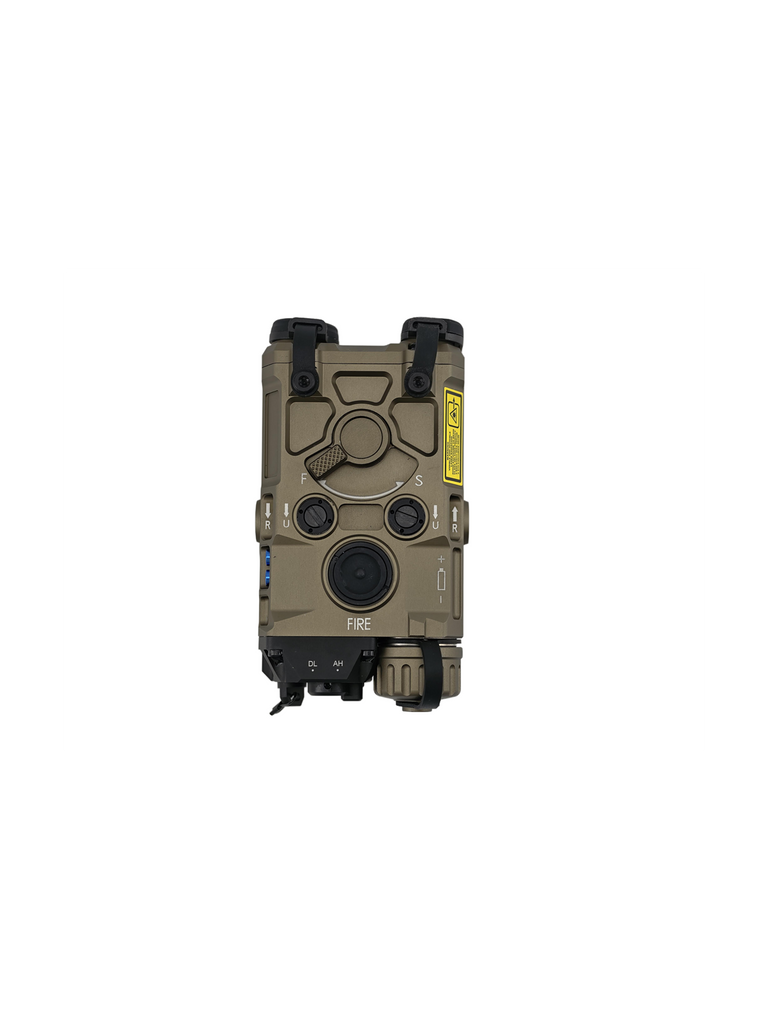

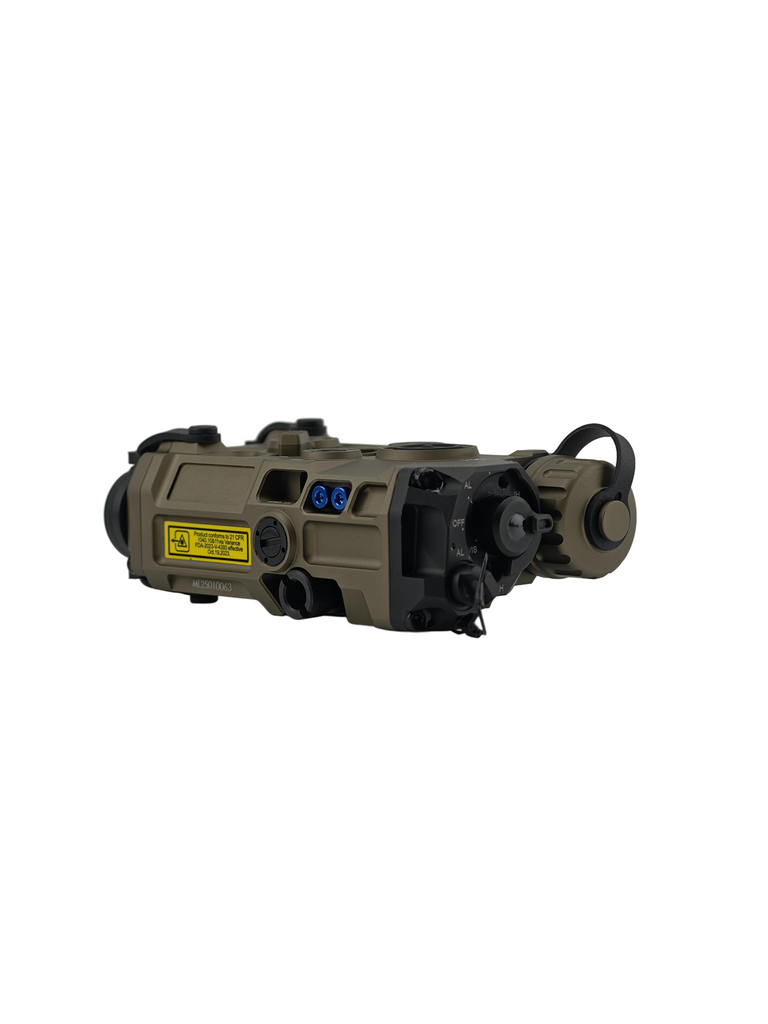

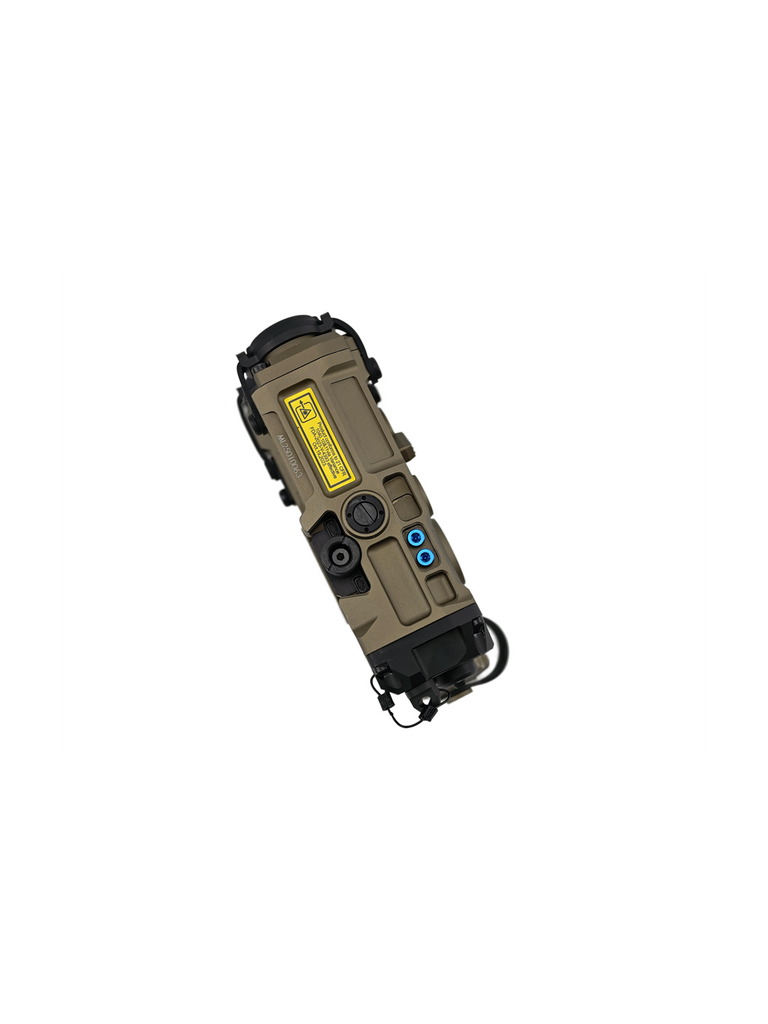

EVOLUTIONGEAR OGL Dual Laser + IR Illuminator – Co-aligned Visible/IR Aiming Device (Potted)
Professional-grade multi-function laser aiming system with adjustable VCSEL IR illuminator. CNC-machined 6061 aluminum housing, hard anodized finish, and sealed electronics for reliable performance under recoil.
This product is engineered to meet the shock-resistance requirements of real firearms. It features legit US-made IR laser/illuminator modules and has undergone live-fire testing on fully automatic platforms. After 1,000 rounds 5.56, laser deviation remains within 2 MOA.
Key Features
- CNC 6061 aluminum housing with hard anodized surface finish
- US-made IR module + high-quality VCSEL IR illuminator

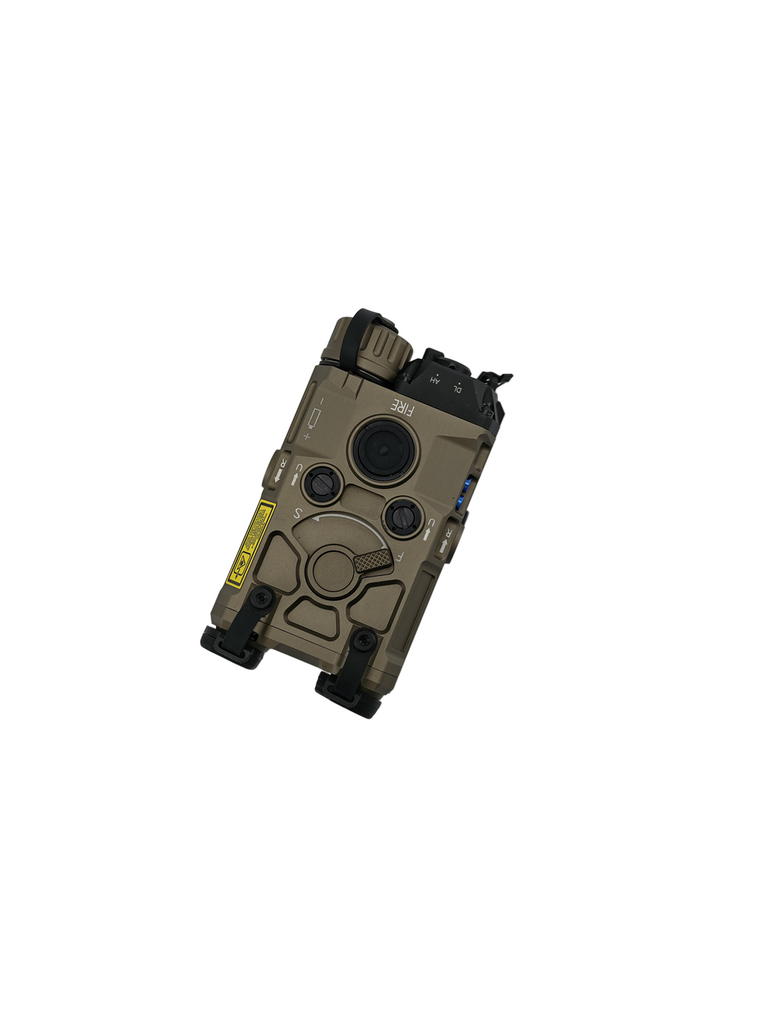

- Ergonomic IR illumination adjustment lever + rear mode selector
- Includes functional IR illuminator diffuser cap
- IR laser holographic pattern generators (Triangle & Cross)
- PCB epoxy sealed for durability
- Click-adjustable windage & elevation
- Clean, adjustable IR illumination with wide divergence range
- Guaranteed to hold zero under 5.56/300 BLK/7.62x39 and 7.62 NATO recoil.
- Supplied with single crane plug.
- IPX7 waterproof rating
- 1-year manufacturer warranty
- Manufactured by EVOLUTIONGEAR®
Specifications
Co-alignment
- Precision: ≤1 MOA
IR Laser
- Wavelength: 850 nm
- Power (High / Low): 40 mW / 0.6 mW
- Beam divergence: 0.5 mrad
Visible Laser (Green)
- Wavelength: 650 nm / 520 nm (selectable)
- Power (High / Low): 40 mW / 4.5 mW
- Beam divergence: 0.5 mrad
IR Illuminator
- Type: VCSEL IR laser, 830 nm
- Power (High / Low): 200 mW / 10 mW
- Adjustable divergence: 15–150 mrad
General
- Recoil rating: up to 5.56/300BLK/7.62x39MM（Full-Auto) /7.62 NATO (Semi)
- Waterproof: IPX7

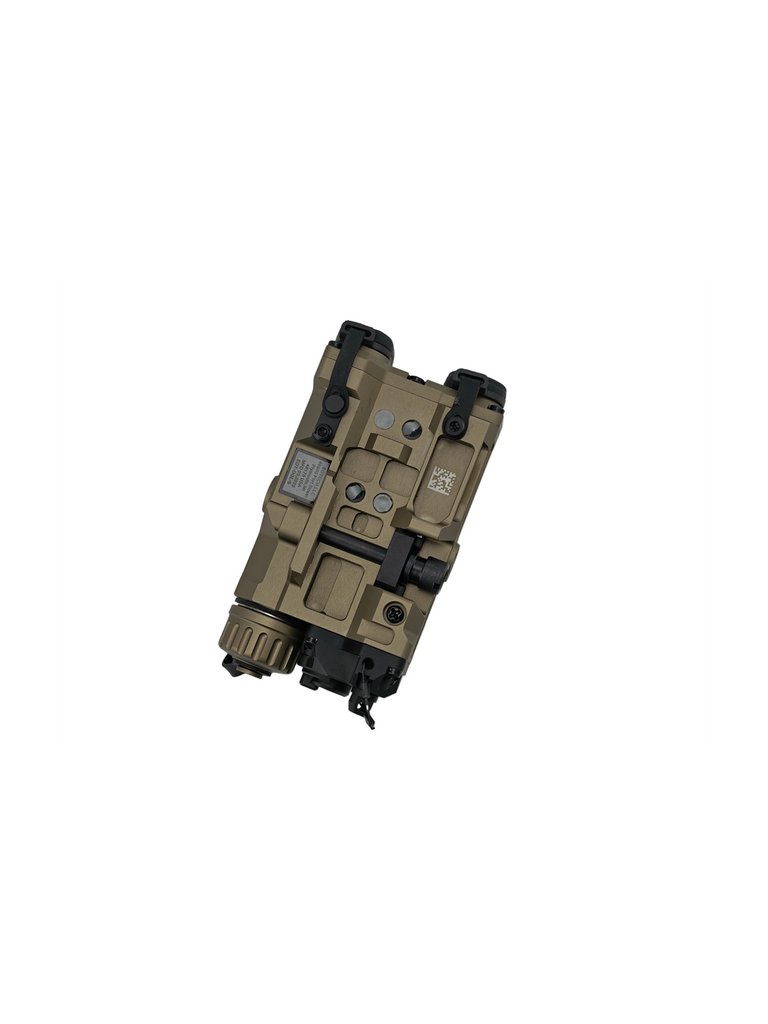

- Mount: Picatinny
- Battery: 1 × 3V CR123A

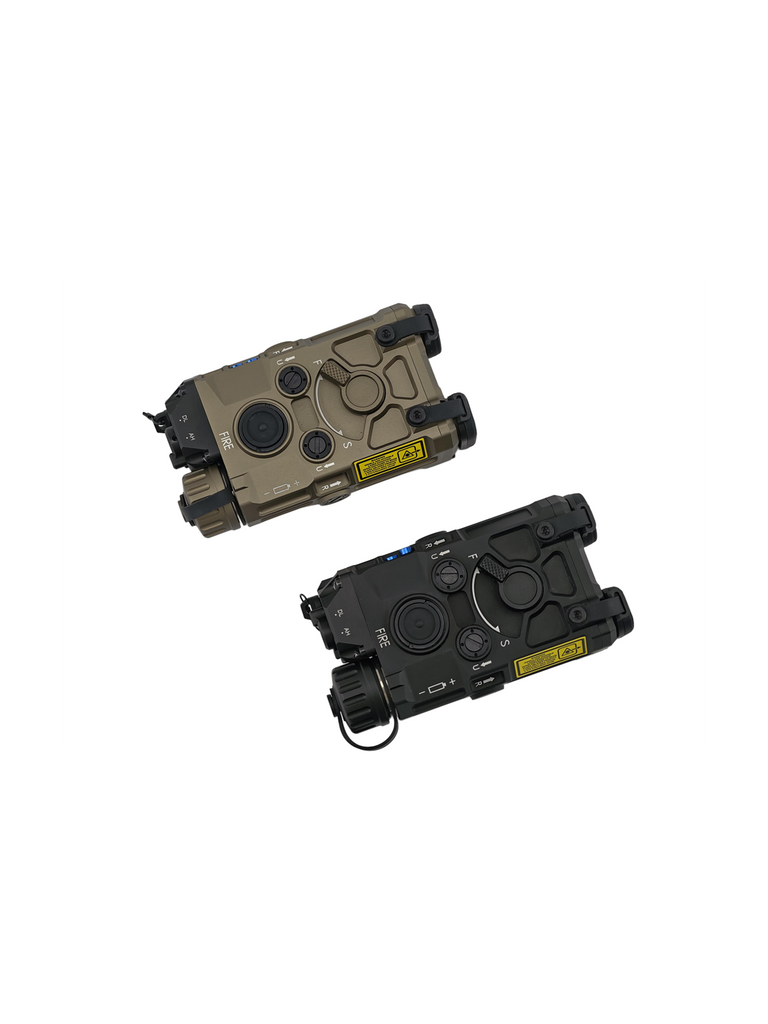

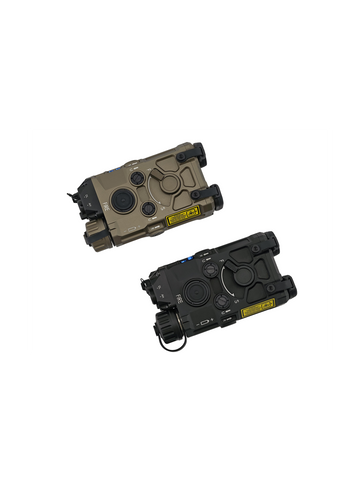

- Color options: Black / Dark Earth
Package Includes
- 1 × Laser / IR unit
- 1 × Sticker and Manual
- 1 × Single crane plug
- 1 × Multi-tool
